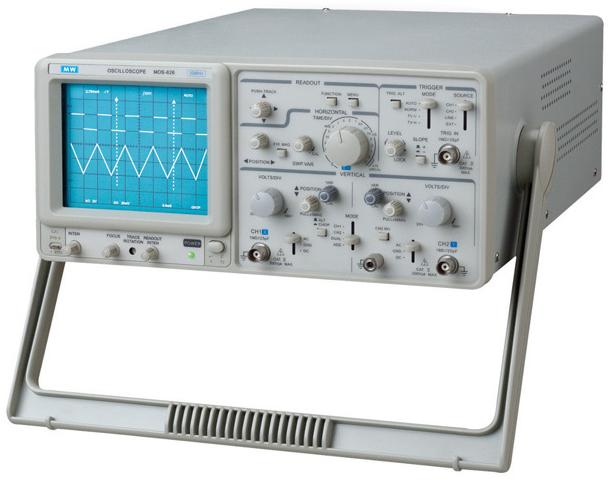

MOS-626 series with a frequency meter read type oscilloscope CRT

Feature:

Ÿ         High luminance,internal graticule Toshiba CRT

Ÿ         Pulse encoder switch

Ÿ         Adjustable cursor function, Easy to operator

Ÿ         Visible coordinate measurement method

Ÿ         Buit in 1000:1 attenuator expanded vertical sensitivity

Ÿ         to 10V~20V/DIV

Ÿ         20MHz/40MHz/50MHz Dual Channel

Ÿ         High Sensitivity 1mV/DIV

Ÿ         CH1 Output

Ÿ         Z Axis lnput

Ÿ         ALT Triggering Function. Two independent

Ÿ         Signalssimultaneous observation

Ÿ         Triggering Level Lock Function,Automatic Synchronize Function

Ÿ         Cursor Readout Function, Measure △V、△T、1/△T

Ÿ         Frequency Display

Cursor measurement system：

Ÿ         Cursor measurement function: ⊿T, 1/⊿ T, ⊿V；P (t,v)

Ÿ         Cursor Readout Function

Ÿ         Cursor resolution: 1/25 DIV

Ÿ         Effective cursor Rang: Vertical:±3div；Horizontal:±4div

Ÿ         Panel setting: Vertical: V/DIV, AC/DC/GND,CH1,CH2,INV,ALT,

Ÿ         CHOP, ADD; Horizontal: TIME/DIV, ×1/×10),X-Y
