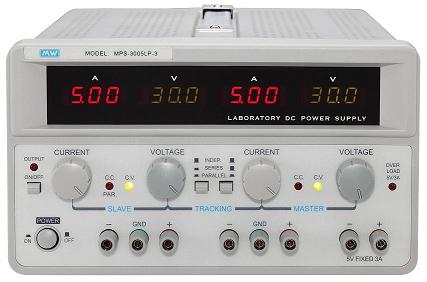

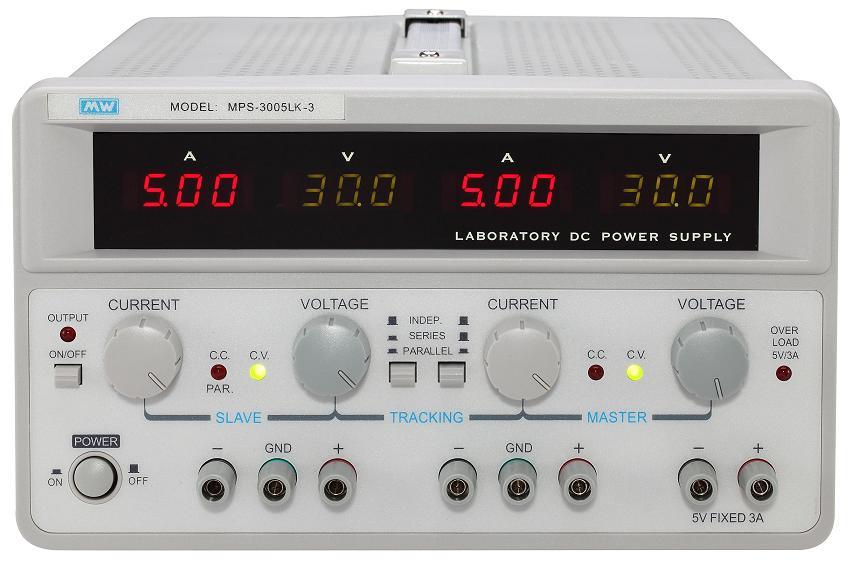

   MPS-3003LK-3 Series

MPS-3003LK-3 series with the output off standard multi-channel analog power



Feature:



Ÿ         0-30V,0-3A/5A Dual Channels adjustable  and one fixed 5V/3A output

Ÿ         Overload Protection

Ÿ         Constant Voltage, Constant Current, Low ripple

Ÿ         noise, Low temperature drift

Ÿ         Pre-set current limited point

Ÿ         In tracking mode,both outputs are automatically

Ÿ         connected in series or parallel without extracables

Ÿ         In series mode,machine can be connected as

Ÿ         positive and negative supply

Ÿ         Multi tune potentiometers,easy to setup voltage

Ÿ         High efficient toroidal transformer

Ÿ         Dual Color four LED Digital Panel Meters Voltages and Current Display

Ÿ         MPS-3003LK-3 has out control function

             information technology product catalogue [view]

Model
Output voltage
Output rated current
Measurement resolution
Size
Weight
0~30V×2 5V×1 , 0~3A×2 3A×1 , Voltage: 100mV current: 10mA, 370(D)*255(W)*155(H)mm , 9kg ,
0~30V×2 5V×1 , 0~5A×2 3A×1 , Voltage: 100mV current: 10mA, 370(D)*255(W)*155(H)mm , 9kg ,
