   MFG-1000 Series

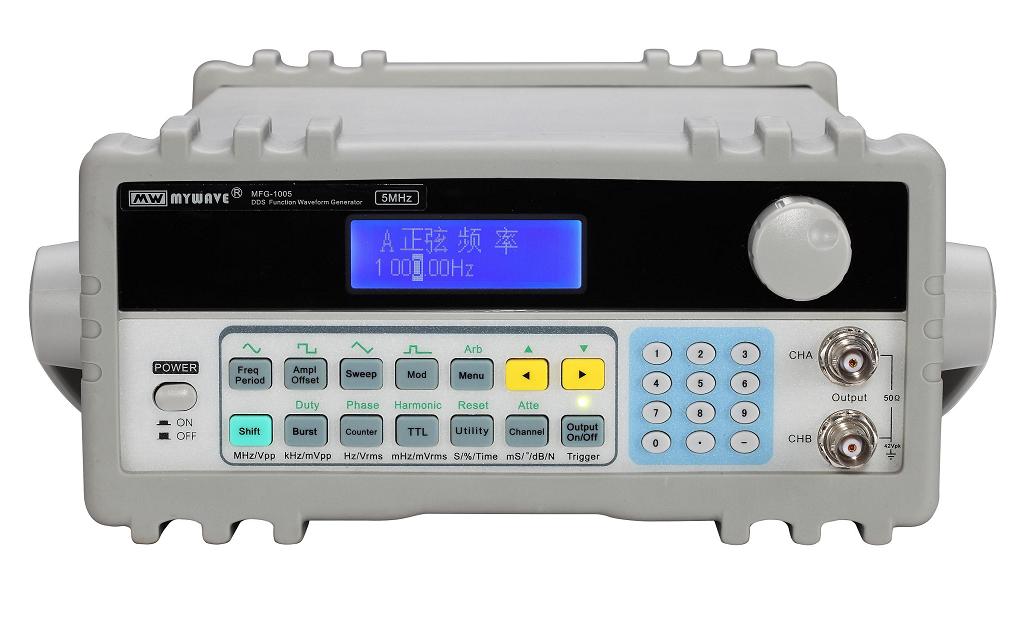

MFG-1000 Series DDS Function Generator

Based on the direct digital synthesis (DDS) technology and unique FPGA design, MFG-1000 Series are built with exceptionally performance far exceeding that of any conventional function generators at a very competitive price. Stable output frequency, low distortion and fine frequency resolution are the most remarkable characteristics of this product series.

MFG-1000 Series include four members at 5MHz, 10MHz, 15MHz and 20MHz bandwidth. MFG-1000 Series provide 180MSa/s sample rate, 10bits vertical resolution, high stability level, output waveform accuracy and multiple modulation functions, including FM, ASK, FSK, PSK, frequency sweep, amplitude sweep, burst, etc., which can meet users' diversified needs. What's more, the LCD display, user-friendly interface design and panel layout bring users exceptional experience. The remote control of the generator can be easily done through optional configuration interface of RS232 device. Additionally, the extendable optional functions of frequency counter and power amplifier accommodate a wide range of applications.



Features

·        Direct Digital Synthesis(DDS) technology, 2 independent output channels

·        LCD display, English/Chinese menu

·         32 kinds of built-in pre-stored  waveforms

·         Minimum stable output waveform: 1mV(50Ω)

·         Multiple modulation functions: FM, FSK, ASK, PSK

·         Frequency sweep, amplitude sweep and burst functions

·         Over voltage, over current, output short-circuit and reverse voltage protections

·         Optional parts: RS232 interface, frequency counter, power amplifier

For detailed performance parameters and technical specifications, refer to MFG-1000 Series Data Sheet.



Model
Max. Output Frequency
Sample Rate
Vertical Resolution
Waveform Length
Pre-stored Waveform Type
5MHz 100MSa/s 8bits 1024pts 32 types
10MHz 100MSa/s 10bits 1024pts 32 types
15MHz 100MSa/s 8bits 1024pts 32 types
20MHz 100MSa/s 8bits 1024pts 32 types
